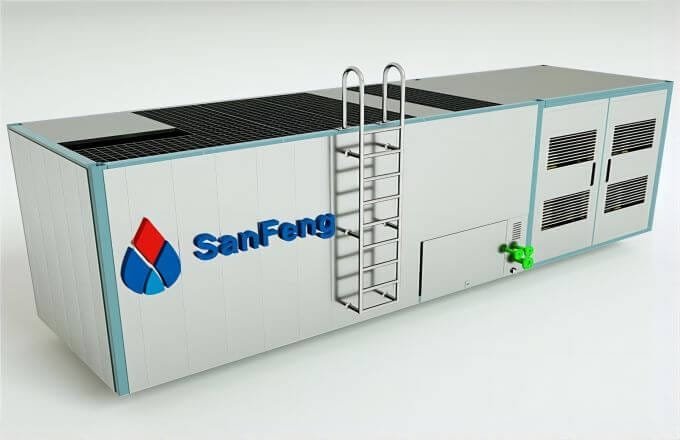

Skid-Mounted Evaporator
About Skid-mounted Evaporator
What is the purpose of the treatment?
- Achieve zero liquid discharge(ZLD) – Evaporation Crystallization.
- Reduce the discharge volume, get the concentrated slurry – Evaporation Concentration.
What is the capacity?
There is modular type unit for big capacity.
- 0.5TPH
- 1TPH
- 1.5TPH
- 2TPH
Skid-mounted Evaporator in Sanfeng
MVR Concentration:
- Evaporator
- Separator
- MVR steam compressor
- Pumps, valves and instruments
- Pipeline and frame structure
- PLC system
MVR Crystallization
- Evaporator
- Separator
- MVR steam compressor
- Solid-liquid separation section
- Pumps, valves and instruments
- Pipeline and frame structure
- PLC system

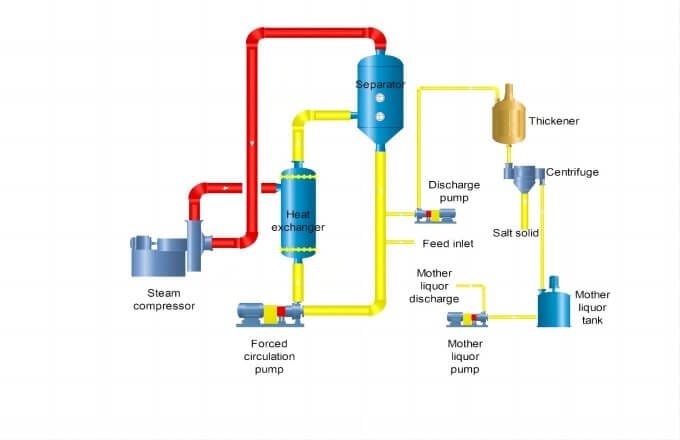

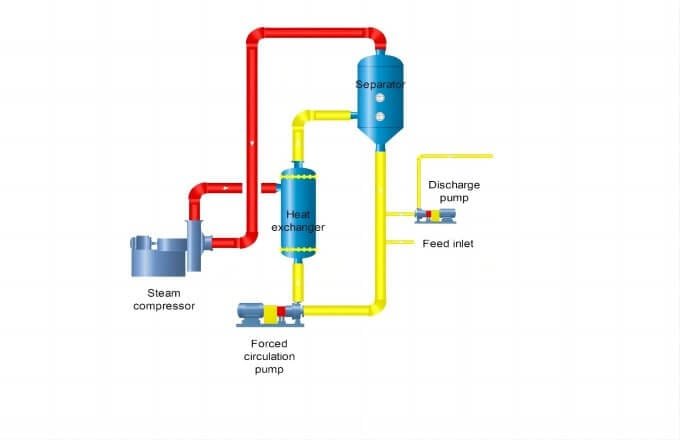

Process Diagram
Skid unit specification
Installation requirement
Connect steam, electricity, compressed air, tap water, cooling water to the skid unit.
Optional
- Option skid unit: hardness removal unit
- Option skid unit: electricity steam generator
- Option skid unit: air compressor
- Option skid unit: cooling tower
